📄SmartPDE Tablet (older Model)

Summary of the SmartPDE Tablet (older Model)

Overview

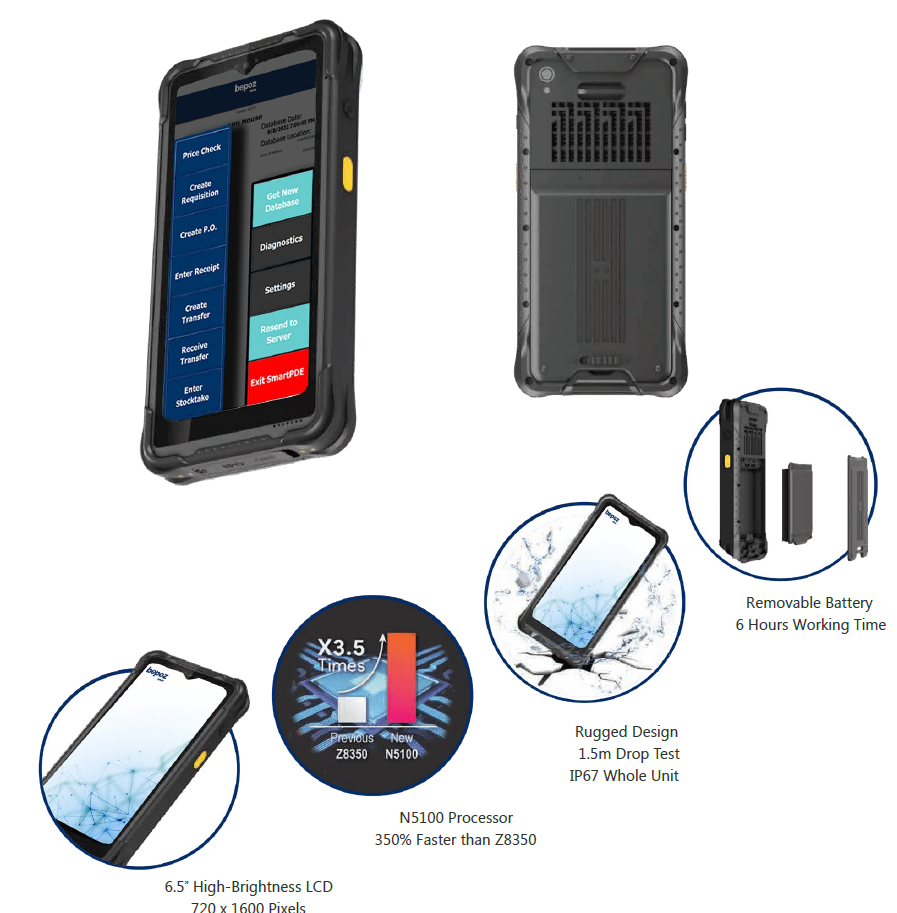

The SmartPDE Tablet (older Model) is a rugged handheld device used to run SmartPDE for mobile inventory and receiving tasks in bepoz environments. It supports common SmartPDE workflows such as price checks, requisitions, purchase orders, transfers, receiving, and stocktake activity.

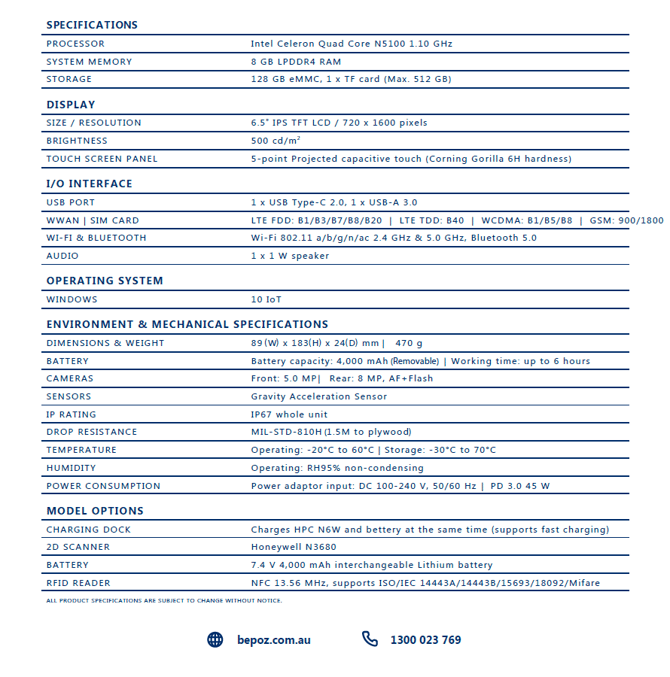

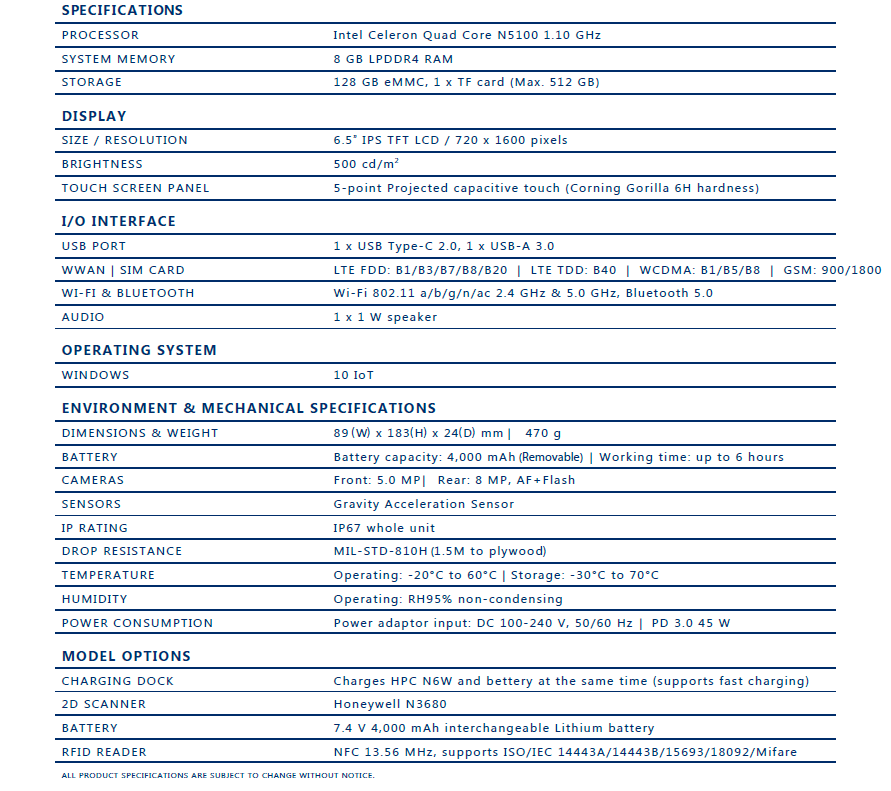

Specifications

Specification Details
Operating system Windows 10 IoT
Processor Intel Celeron Quad Core N5100 1.10 GHz
Memory 8 GB LPDDR4 RAM
Storage 128 GB eMMC (supports TF card expansion up to 512 GB)
Display 6.5" IPS TFT LCD, 720 × 1600, 500 cd/m²
Touch screen 5-point capacitive touch (Gorilla Glass)
Connectivity Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz and 5.0 GHz), Bluetooth 5.0, WWAN/SIM (LTE supported, model dependent)
Ports 1 × USB Type-C (2.0), 1 × USB-A (3.0)
Audio 1 × 1 W speaker
Camera Front 5 MP, rear 8 MP with AF + flash
Sensors Gravity acceleration sensor
Battery 4,000 mAh removable battery, up to 6 hours working time
Rugged rating IP67 (whole unit), 1.5 m drop resistance (MIL-STD-810H)
Dimensions and weight 89 (W) × 183 (H) × 24 (D) mm, 470 g
Temperature Operating 20°C to 60°C, storage -30°C to 70°C
Humidity Operating RH95% non-condensing
Power Power adaptor input DC 100–240 V, 50/60 Hz, PD 3.0 45 W

Model options and accessories

Depending on the unit supplied, the following options may be available:

  • Charging dock (charges the tablet and battery at the same time, supports fast charging)

  • 2D scanner (Honeywell N3680)

  • RFID reader (NFC 13.56 MHz, supports ISO/IEC 14443A/14443B/15693/18092/Mifare)

Operational notes

  1. Charge the tablet using the charging dock or the USB Type-C connection before first use.

  2. Swap the removable battery if the device is required for extended shifts beyond typical run time.

  3. Avoid operating or storing the device outside its supported temperature range.

Note: Specifications and options can vary by hardware supply. Confirm the exact configuration with the device label or supplier documentation if required.





updated to: bepoz v4.8.2.1
