📄Z21 AIO Panel PC

Summary of the Z21 AIO Panel PC

Overview

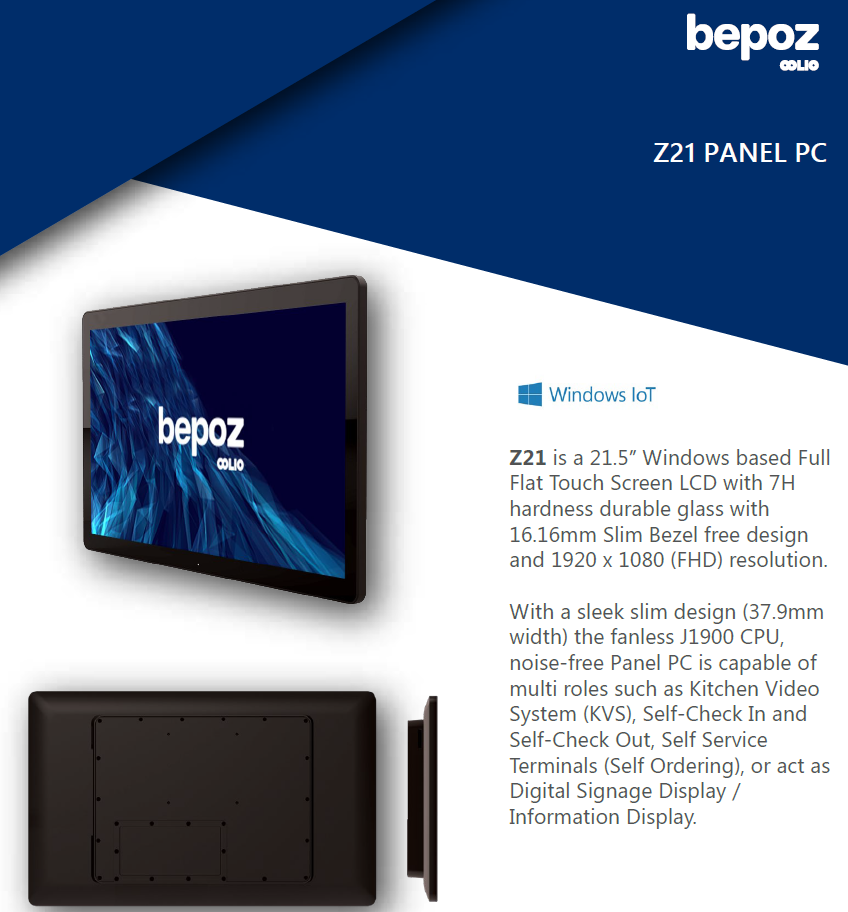

The Z21 AIO Panel PC is a 21.5" Windows-based, fanless touchscreen device commonly used in bepoz deployments for customer-facing or operational displays, including kiosks and kitchen video workflows.


Typical use cases

  • Kitchen Management System (KMS) display

  • Self-service ordering terminal

  • Self check-in and self check-out station

  • Digital signage and information display

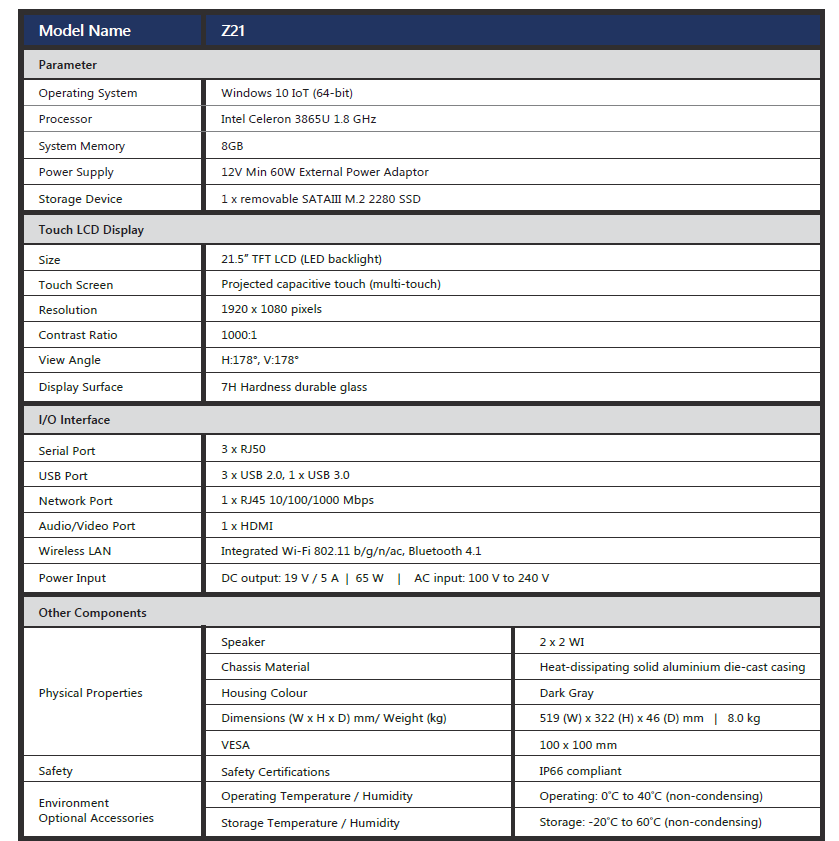

Specifications

Parameter Specification
Operating system Windows 10 IoT (64-bit)
Processor Intel Celeron 3865U 1.8 GHz
System memory 8 GB
Storage device 1 × removable SATAIII M.2 2280 SSD
Display size 21.5" TFT LCD (LED backlight)
Touch screen Projected capacitive touch (multi-touch)
Resolution 1920 × 1080 (FHD)
Contrast ratio 1000:1
View angle H: 178°, V: 178°
Display surface 7H hardness durable glass
Serial ports 3 × RJ50
USB ports 3 × USB 2.0, 1 × USB 3.0
Network port 1 × RJ45 10/100/1000 Mbps
Audio/video port 1 × HDMI
Wireless Wi-Fi 802.11 b/g/n/ac, Bluetooth 4.1
Speakers 2 × 2 W
Housing colour Dark Gray
Dimensions (W × H × D) 519 × 322 × 46 mm
Weight 8.0 kg
VESA 100 × 100 mm
Safety certification IP66 compliant
Operating temperature 0°C to 40°C (non-condensing)
Storage temperature -20°C to 60°C (non-condensing)

Installation considerations

  1. Confirm the intended use case (for example, kiosk, KMS, or signage) and position the unit to suit customer or staff line-of-sight.

  2. Mount the device using the VESA 100 × 100 pattern if wall or bracket mounting is required.

  3. Connect network (RJ45 or Wi-Fi) and required peripherals (USB, HDMI, and serial devices as applicable).

  4. Verify power requirements are met using the correct external power adaptor before commissioning the device.

Important: Any mounts or brackets (if required) must be fitted by a qualified tradesperson. bepoz do not install mounts or brackets.







updated to: bepoz v4.8.2.1
